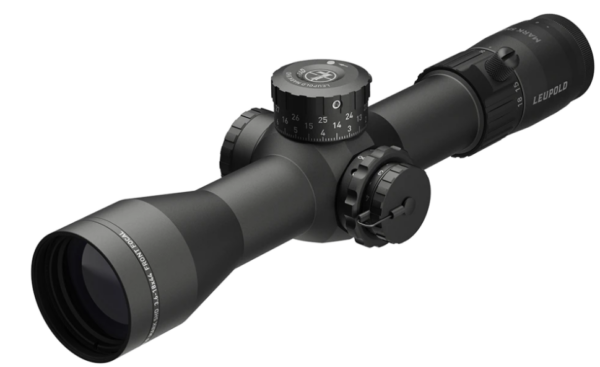

Leupold, Mark 5HD 3.6-18×44 (35mm) M5C3 FFP Illum. TMR
SKU: 173301
DESCRIPTION
Pick up a Mark 5HD™ 3.6-18x44mm and you’ll feel the difference. It’s up to 20 ounces lighter than other riflescopes in its class, giving you an advantage in the field or at the range. The versatile 3.6-18x magnification range helps you engage close targets, while also giving you the flexibility to reach out to long distances. With three revolutions of elevation adjustment and multiple reticle options, this scope will max out the performance of the latest long-range rifles and ammunition, guaranteed.
Built around Leupold’s Professional-Grade Optical System, the Mark 5HD offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter. Ergonomically designed with more tactile and audible click adjustments, larger numbers, and a high-speed throw lever, the Mark 5HD is built to put accurate fire downrange faster.
The unique combination of features, durability, and professional-grade optical performance guarantees that the Mark 5HD can handle any challenge you throw at it. It’s 100% waterproof and fogproof, and like all Leupold® riflescopes, it’s designed, machined, and assembled in the USA and guaranteed to perform for life.
SPECIFICATIONS
Adjustable Parallax: Side Focus
Adjustable Objective: No
Elevation Adjustment Type: M5C3
Locking Dial: Yes
Revolution Indicator: Yes
Rezero Type: Set Screw
Windage Adjustment Type: Capped
Custom Dial System (CDS): No
Custom Dial Compatible: Yes
BDC Dial Included: No
Reticle Type: Illuminated
Reticle: Illum. FFP TMR (Mk)
Magnification Type: Variable
Battery Type: CR2032
Switch Type: Dial
Daylight Bright Illumination: No
Electronic Reticle Level: No
Guard-ion Lens Coating: No
Weight (oz): 26
Elevation Adjustment Value per Click: 0.1Mil
Elevation Adjustment Range (MOA): 100
Elevation Adjustment Range (MIL): 29
Elevation Adjustment Range (cm @ 100m): 291
Elevation Adjustment Per Revolution: 10.5 MIL
Elevation Dial Travel Limit: 30MIL
Windage Adjustment Value per Click: 0.1Mil
Windage Adjustment Range (MOA): 80
Windage Adjustment Range (MIL): 23
Windage Adjustment Range (cm @ 100m): 233
Windage Adjustment Per Revolution: 10 MIL
Magnification Max: 18
Magnification Min: 3.6
Objective Lens Diameter (mm): 44
Linear FOV Low Mag (ft@100yds): 28.3
Linear FOV High Mag (ft@100yds): 5.8
Angular FOV Low Mag (Degrees): 5.4
Angular FOV High Mag (Degrees): 1.1
Eye Relief Low Mag (in) : 3.5
Eye Relief High Mag (in): 3.8
Minimum Parallax-Free Distance (yd): 50
Battery Life (hr), Low Intensity: 1800
Battery Life (hr), High Intensity: 96
Number of Illum Settings: 7
